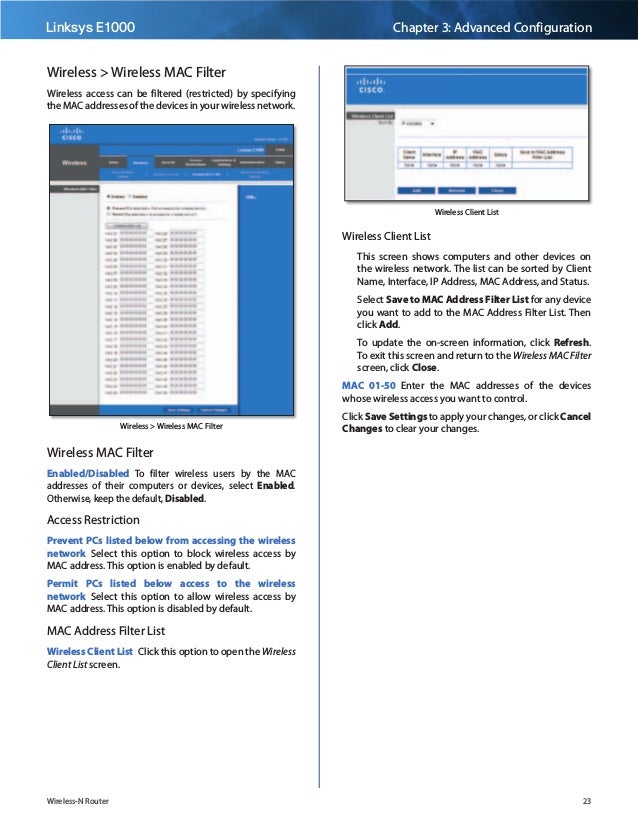

The Linksys E1000 Wireless-N Router lets you access the Internet via a wireless connection or wired through one of its four Ethernet ports.
Note The Cisco Nexus 1000V is compatible with any upstream physical access layer switch that is Ethernet standard's compliant. Installing and Configuring the VSM VMUse the procedures in this section to install and configure the VSM VM. BEFORE YOU BEGINBefore beginning the procedures in this section, you must know or do the following:. The VSM VM must be run on the same IP subnet as the ESX 4.0 hosts that it manages. The host for the VSM VM runs on 64-bit server hardware and can run ESX 4.0 or ESX 3.5. On the ESX host for the VSM VM, make sure that you have created 3 port groups on the VMware vSwitch — the Control VLAN, the Packet VLAN, and the Management VLAN. Be sure to associate them with the corresponding VLANs within the physical LAN.
To install the VSM, you can use either of the following methods:– Attach the VSM ISO image to the VM virtual CD-ROM.– Use the Nexus1000v-4.0.4.SV1.1.ova file. Installing a VSM using the OVA fileUse this procedure to install a VSM on the Cisco Nexus 1000V using the OVA file. BEFORE YOU BEGINBefore beginning the installation, you must know or do the following:. You have a copy of the following file for installing the VSM:– Nexus1000v-4.0.4.SV1.1.ova. This procedure installs the VSM using the OVA file. See your VMware documentation if you want to, instead, install the VSM by attaching the ISO image to your CD-ROM.
If you are installing redundant VSMs, use this procedure to install the software on the primary VSM and then on the secondary VSM, in the sequence shown in the. DETAILED STEPSStep 1 Download the Nexus1000v-4.0.4.SV1.1.ova installation file to the local disk.Step 2 From the VSphere Client, choose File Deploy OVF Template.The Source screen opens.
Step 13 You have completed this procedure.Return to the.Setting Up the VSMUse this procedure to set up and save the VSM management access configuration. BEFORE YOU BEGINBefore beginning this procedure, you must know or do the following:. This procedure requires that the VSM image is already installed. You can install the VSM by attaching the ISO image to your CD-ROM using the VMware documentation; or by using the. This procedure requires you to create an administrator password. Use the following password strength guidelines:– At least eight characters in length– Avoid using consecutive characters (such as 'abcd')– Avoid using repeating characters (such as 'aaabbb')– No dictionary words– No proper names– Contains both uppercase and lowercase characters– Contains numbers.
Note All alphanumeric characters and symbols on a standard US keyboard are allowed except for these three: $?. You have the following networking information available:– VSM VM mgmt0 IP address and netmask– Default gateway IP address. Cisco highly recommends that you run the VSM in an HA environment. For more information about configuring HA, see the Cisco Nexus 1000V High Availability and Redundancy Reference, Release 4.0(4)SV1(1). You have already identified the HA role for this VSM from those listed in. Dual Supervisor SystemStandaloneXPrimaryXSecondaryXIf this is the first VSM of a dual supervisor pair, install it as primary.If this is the second VSM of a dual supervisor pair, install it as secondary.For more information about HA roles, see the Cisco Nexus 1000V High Availability and Redundancy Reference, Release 4.0(4)SV1(1). Although primary and secondary VSMs can reside in the same host, to improve redundancy, install them in separate hosts and, if possible, connected to different upstream switches.
Revenant font. For other recommendations, see the. You have the following Cisco Nexus 1000V domain information:– Control VLAN ID– Packet VLAN ID– Domain ID DETAILED STEPSStep 1 Power on the VM, choose Install Cisco Nexus 1000V, and bring up the new image.One of the following screens displays.
/WRT54G2_linksys-56a6f9a25f9b58b7d0e5cacd.jpg "Drivers")
Note You can use the setup routine to update the configuration done in through at any time by entering the setup command in EXEC mode. Once setup begins, press Enter to skip a command. Note The host ID encompasses everything that appears after the colon (:). In this example, the host ID is VDH=234985805. You will need the host ID in.Step 2 From your software license claim certificate, locate the product authorization key (PAK).You will need the PAK in.Step 3 Go to the.Step 4 From the Software Download website, go to the Product License Registration Website.Step 5 From the Product License Registration website follow the instructions for registering your VSM license.The license key file is sent to you in e-mail. The license key authorizes use on only the host ID device.
Step 8 You have completed this procedure.Return to the.Obtaining an Evaluation License FileUse this procedure to obtain a temporary evaluation license file for your VSM.To obtain a permanent license file instead, see the. BEFORE YOU BEGINBefore beginning this procedure, you must know or do the following:. The evaluation license expires after 60 days. The evaluation license covers a maximum of 16 CPUs. You are logged in to either your standalone or active VSM CLI in EXEC mode with a role that has privileges equal to that of network-admin.You do not need to install the license on the secondary VSM.
The license configuration is automatically synchronized with the secondary VSM after you install it on the primary VSM. This procedure requires you to copy a license file, and your username must have the network-admin role which allows you to copy files. For information about user accounts and roles, see the Cisco Nexus 1000V Security Configuration Guide, Release 4.0(4)SV1(1). DETAILED STEPSStep 1 Using the following command, obtain the serial number, also called the host ID, for your VSM:show license host-id. Step 6 You have completed this procedure.Return to the.Installing the License on the VSMUse this procedure to install the license on a standalone or primary VSM. BEFORE YOU BEGINBefore beginning this procedure, you must know or do the following:. If your VSM has an Evaluation License already installed, you must unintsall it before installing a Permanent License.
For more information, see the in the Cisco Nexus 1000V License Configuration Guide, Release 4.0(4)SV1(1). This procedure installs the license from the license key file using the name licensefile.lic. You can specify a different name. If you are installing multiple licenses for the same VSM, also called license stacking, make sure that each license key file name is unique.
Repeat this procedure for each additional license file you are installing, or stacking, on the VSM. You are logged in to the standalone or active VSM console port.You do not need to install the license on the secondary VSM. The license configuration is automatically synchronized with the secondary VSM after you install it on the primary VSM. This procedure requires you to copy a license file, and your username must have the network-admin role which allows you to copy files. For information about user accounts and roles, see the Cisco Nexus 1000V Security Configuration Guide, Release 4.0(4)SV1(1). SUMMARY STEPS1. Install license bootflash: filename2.
Show license file filename3. Show license usage NEXUS1000VLANSERVICESPKG4. Copy running-config startup-config DETAILED STEPS. N1000v#Verifies the license installation by displaying the CPU licenses in use on each VEM.Step 4copy running-config startup-configExample:n1000v(config)# copy running-config startup-config(Optional) Saves the running configuration persistently through reboots and restarts by copying it to the startup configuration.Step 5You have completed this procedure.Return to the.Verifying VSM ConnectivityUse this procedure to verify the IP connectivity to the active VSM. BEFORE YOU BEGINBefore beginning this procedure, you must know or do the following:. You are logged in to the standalone or active VSM in EXEC mode.
DETAILED STEPSStep 1 Verify IP connectivity with the active VSM.Example. Connectivity is now established to the VSM and you can use SSH for a secure connection.Step 2 You have completed this procedure.Return to the.Creating a Cisco Nexus 1000V Plug-In on the vCenter ServerUse this procedure to create the Cisco Nexus 1000V plug-in (extension) on the vCenter Server. BEFORE YOU BEGINBefore beginning this procedure, you must know or do the following:. You know the IP address of the active VSM. A plug-in must be added to the vCenter Server for every VSM connecting to it.If you have dual supervisors, the standby VSM uses the same plug-in if it becomes active. Using an old or corrupt version of the cisconexus1000vextension.xml file could result in an error message. DETAILED STEPSStep 1 Open an Internet browser such as Internet Explorer and go to the IP address of the active VSM.For example, in the, the address is 2 Download the file, cisconexus1000vextension.xml.
Step 11 Close the window.Step 12 You have completed this procedure.Return to the.Connecting to the vCenter ServerUse this procedure to configure the connection between the VSM and the vCenter Server and then save the configuration in persistent memory across reboots and restarts. BEFORE YOU BEGINBefore beginning this procedure, you must know or do the following:. You are logged in to the standalone or active VSM in EXEC mode.
The extension for the Cisco Nexus 1000V is already registered as a plug-in on the vCenter Server. You know the datacenter name, which is case-sensitive.
The datacenter already exists on the vCenter Server. You know the vCenter Server server IP address.
Linksys Router Setup Software
DETAILED STEPSStep 1 In Server Virtualization Switch (SVS) Connection Configuration mode, set up your connection to the vCenter Server using the following command sequence.Example. Caution You must store the port profiles in the Cisco Nexus 1000V startup configuration so that they are saved in the event of a restart or reboot. Otherwise, in the event of a VSM reboot, port groups continue to exist on the vCenter Server but not on the VSM.DETAILED STEPSStep 1 In Port Profile Configuration mode, define the uplink port profile for use with your physical NICs on the VEM that carries the control and packet VLANs. Then save this configuration in the Cisco Nexus 1000V startup configuration.Example. Step 2 You have completed this procedure.Return to the.Configuring the Uplink Port Profile for VM TrafficUse this procedure to define the uplink port profile that the physical interface uses to carry the VM traffic.
BEFORE YOU BEGINBefore beginning this procedure, you must know or do the following:. You have already added the required VLANs using the. You are logged in to the standalone or active VSM in EXEC mode. You don't need to configure the system port profile on the secondary VSM.
Once this configuration is made in the primary VSM, it automatically synchronizes with the secondary VSM. You can save the commands used here in a file, copy it to bootflash, and run it as a script. For more information about using scripts, see the Cisco Nexus 1000V Getting Started Guide, Release 4.0(4)SV1(1). The port profile name you designate in this procedure is your choice. If you want to use the system-uplink port profile to carry your data traffic, then add the data VLAN to the system-uplink port profile and make the corresponding changes on the upstream switch. For more information about port profiles, see the Cisco Nexus 1000V Port Profile Configuration Guide, Release 4.0(4)SV1(1).
DETAILED STEPSStep 1 In Port Profile Configuration mode, define the system-uplink port profile that will be bound to the physical NIC to be used for VM traffic. Then save this configuration in the Cisco Nexus 1000V startup configuration.Example. Step 2 You have completed this procedure.Return to the.Configuring the Data Port Profile for VM TrafficUse this procedure to define the data port profile that will be presented to the VM as a network adapter to carry traffic to and from the guest VM. BEFORE YOU BEGINBefore beginning this procedure, you must know or do the following:.
You have already added the required VLANs using the. You are logged in to the standalone or active VSM in EXEC mode.
You don't need to configure the data port profile on the secondary VSM. Once this configuration is made in the primary VSM, it automatically synchronizes with the secondary VSM. You can save the commands used here in a file, copy it to bootflash, and run it as a script. For more information about using scripts, see the Cisco Nexus 1000V Getting Started Guide, Release 4.0(4)SV1(1). The port profile name you designate in this procedure is your choice. For more information about port profiles, see the Cisco Nexus 1000V Port Profile Configuration Guide, Release 4.0(4)SV1(1). DETAILED STEPSStep 1 Define the port profile to be used as the uplink port profile for VM NICs.
Then save this configuration in the Cisco Nexus 1000Vstartup configuration.Example. Note If using VUM, the Cisco Nexus 1000V software is now loaded onto the DVS by VUM.Step 4 Do one of the following:. If you use the system-uplink profile to carry data traffic and the system-uplink profile has already been defined, then you do not need to assign the vm-uplink profile to another vmnic. If not, choose the next vmnic that is not attached to the VMware vSwitch, for example vmnic1.It should be linked to the Uplink Port Group system-uplink.Figure 7 Choosing the VM Uplink NIC for the Host.
Note To add multiple uplinks to the DVS and form a port channel with them, see the Cisco Nexus 1000V Port Profile Configuration Guide, Release 4.0(4)SV1(1).Step 6 Click Next.Step 7 Verify the port group assignment and click Finish.Step 8 Do one of the following:. If the host is successfully added to the DVS, continue with the next step. If the operation fails, see the Cisco Nexus 1000V Troubleshooting Guide, Release 4.0(4)SV1(1).Step 9 You have completed this procedure.Return to the.Verifying the InstallationUse this procedure to verify that the software is installed as expected. BEFORE YOU BEGINBefore beginning this procedure, you must know or do the following:. Once the host is added to DVS, the Server-Name is displayed in the show module command output. This should happen within 5 minutes of the module coming up on VSM.
The server name is the equivalent of the host object name seen in vCenter Server and is fetched from the vCenter Server-VSM connection. DETAILED STEPSStep 1 On the VSM, verify that the VEM appears as expected.
show module. show module vem mapping. Step 4 You have completed this procedure.Return to the.Starting the VMsUse this procedure to start the VMs and verify their connectivity to the network. BEFORE YOU BEGINBefore beginning this procedure, you must know or do the following:.
Cisco E1000 Driver
You have an IP address in the same subnet as the VMs to use for verifying VM connectivity. You have the VMware documentation for creating the VMs available. For a detailed description of the system, see the Cisco Nexus 1000V Getting Started Guide, Release 4.0(4)SV1(1).
DETAILED STEPSStep 1 Create the VMs.Step 2 Edit VM settings on the vSphere Client so that their network adapters are in port profile data262, defined in the.Step 3 Power on the VMs and verify the traffic as you would normally.Step 4 You have completed this procedure.Return to.Implementation GuidelinesAfter completing the installation procedures in this document, use the following guidelines as you configure the Cisco Nexus 1000V. If two or more PNICs are required to carry the same VLANs then you must configure them in a port channel. For information about port channels, see the Cisco Nexus 1000V Layer 2 Switching Configuration Guide, Release 4.0(4)SV1(1). If PNICs on the same server are connected to different upstream switches, then you must configure the asymmetric port channel in host mode (vPC-HM). For more information, see the following documents:– Cisco Nexus 1000V Port Profile Configuration Guide, Release 4.0(4)SV1(1)– Cisco Nexus 1000V Interface Configuration Guide, Release 4.0(4)SV1(1). Cisco recommends that you run the VSM in HA mode.
